Estuary Commons creates a network of public spaces, adapts ecological systems, and strengthens social and economic relationships for a future of community-driven resilience.



Recognized by the Resilient by Design Jury for finding a way to bring culture, institutions, and the environment forward by design. Their metaphor of the Commons, which became a tangible vision, could be the platform needed to move this project forward and is an opportunity to bring everyone in.



To protect local neighborhoods and restore native habitats, All Bay Collective is rethinking the shoreline around San Leandro Bay with the creation of Estuary Commons. Through the construction of ponds, landforms, and expanded streams, the communities of Deep East Oakland, Alameda, and San Leandro will not only be able to adapt to sea-level rise and groundwater flooding, but will also have a network of flourishing greenways to enjoy for generations to come. ABC has worked closely with eight community organizations from East Oakland to move the communities from the margins to the center of the design and planning process.





-WHat-

-Where-

The complex mix of urban, ecological, social, and economic challenges confronting San Leandro Bay are both confounding and inspiring. ABC’s vision is deeply informed by the history of this estuarine environment, the urgent challenges facing the communities that surround it, and the longer-term risks we can now only glimpse. Designing for resilience requires us to think differently about how resources and places are shared, and we must recalibrate how communities, government agencies, and private entities co-create their socioeconomic and physical environments. Working together with stakeholders and community organizations through a process of learning and co-creation led us to Estuary Commons.

The idea of a commons derives from a rich political and urban history. It joins people and place through shared management of resources for the benefit of all. A commons is at once the public process of governance and civic life and the spaces that bring us together. ABC envisions Estuary Commons as a network of communities joined in mutual obligation to share and manage the resources of a working urban landscape. Locals have been referring to San Leandro Bay as “The Estuary” for years, and Estuary Commons reaffirms this community-conceived identity and speaks to the shared place, process, and path forward that will drive resilient outcomes for generations.

Our site extends from the center of historic San Leandro Bay to approximately one mile inland from Oakland and Alameda’s current shorelines. Since the 1870s, this area has been extensively altered by cutting and filling activities, when a 30-year project cut a tidal canal between San Leandro Bay and the old Oakland Harbor, isolating Alameda from the mainland. More than four square miles of coastal wetlands in Oakland were filled with urban rubble or dredge sand. During this filling process, the channels of several new creeks were created (Lion Creek and Elmhurst Creek) or relocated (San Leandro Creek). Arrowhead Marsh extends into San Leandro Bay from the mouth of San Leandro Creek and serves as an important habitat for two federally-listed wetland species – the Salt Marsh Harvest Mouse and the Ridgeway’s Rail. The area surrounding San Leandro Bay is divided by jurisdictional and infrastructural boundaries but shares the risks of sea level rise and groundwater flooding. San Leandro Bay connects the Oakland Coliseum area, City of Alameda (main island), Bay Farm Island, Oakland International Airport, and the San Leandro watershed.






All Bay Collective proposes four interrelated approaches:

1. Catalyze existing, on-the-ground actions while helping establish conditions for long-term community equity and resilience;

2. Adapt the estuary to protect against flooding, restore ecosystems, create pathways, and provide gathering space;

3. Stitch together neighborhood and shoreline through new transportation and ecological corridors;

4. Prosper by leveraging public assets and private investment through community driven planning to deliver equitable, environmentally just, and resilient development.



Interstate 880 in East Oakland is at imminent risk of flooding. As sea level rise threatens operations on this life line artery in the coming decades, the two-mile stretch of I-880 along San Leandro Bay will no longer be viable without significant modifications. Instead of building it higher, ABC proposes protecting it in a tunnel. The last generation built interstates over creeks which constrained ecological habitats. Future generations can flip this model and tunnel beneath waterways, ensuring healthy ecosystems and a longer useful life span for the freeway as the sea levels continue to rise. Tunnels can control polluted air by filtering it before it reaches nearby neighborhoods. Creating a resilient corridor transforms the existing I-880 barrier and stitches together the divided urban fabric of East Oakland.


-Why-

Our study area’s major assets include Oakland Coliseum, Oracle Arena, Coliseum BART Station, North Field of Oakland International Airport, Interstate 880, and Capitol Corridor Amtrak and Union Pacific Railroad lines. Many miles of road infrastructure already experience flooding during high-tide and king-tide events. Research on flooding at the Oakland Coliseum site reveals rising sea levels are likely to cause problems first through the lower reaches of local creeks and then spreading out of the creek channels near I-880. In addition, groundwater mapping reveals the Oakland Coliseum site and land to the north and south have a shallow water table, increasing the risk of groundwater flooding.

The presence of more socially and economically vulnerable residents in our study area heightens the importance of developing resilient concepts that give all communities the opportunity to thrive in the San Leandro Bay-Coliseum area. The 2010 Census recorded approximately 50,000 people living in the study area, about half in Oakland and half in Alameda. People who live in the adjacent Oakland neighborhoods are predominately African-American and Latino, and people living in Alameda are predominantly Asian-American and Caucasian. In terms of pollution burden and socioeconomic vulnerability, the State of California ranks the Oakland portion of the study area in the 90th percentile, downtown Alameda neighborhoods below the 50th percentile, and Bay Farm Island below the 10th percentile.

 Tidal Cities envisions a new way of living with flooding. A dynamic shoreline landscape combines landforms, living levees, and tidal ponds with floating, mixed-use urban neighborhoods. These neighborhoods will be adaptable to future flooding, isolate contaminated soils, and be more resilient to earthquakes. Tidal ponds provide an ideal location to build floating neighborhoods made from prefabricated units craned onto shared decking and supported by pontoons. Floating buildings are less susceptible to liquefaction. Excavating and containing old industrial soils safely sequesters contaminants before they are mobilized in rising groundwater.

Tidal Cities envisions a new way of living with flooding. A dynamic shoreline landscape combines landforms, living levees, and tidal ponds with floating, mixed-use urban neighborhoods. These neighborhoods will be adaptable to future flooding, isolate contaminated soils, and be more resilient to earthquakes. Tidal ponds provide an ideal location to build floating neighborhoods made from prefabricated units craned onto shared decking and supported by pontoons. Floating buildings are less susceptible to liquefaction. Excavating and containing old industrial soils safely sequesters contaminants before they are mobilized in rising groundwater.

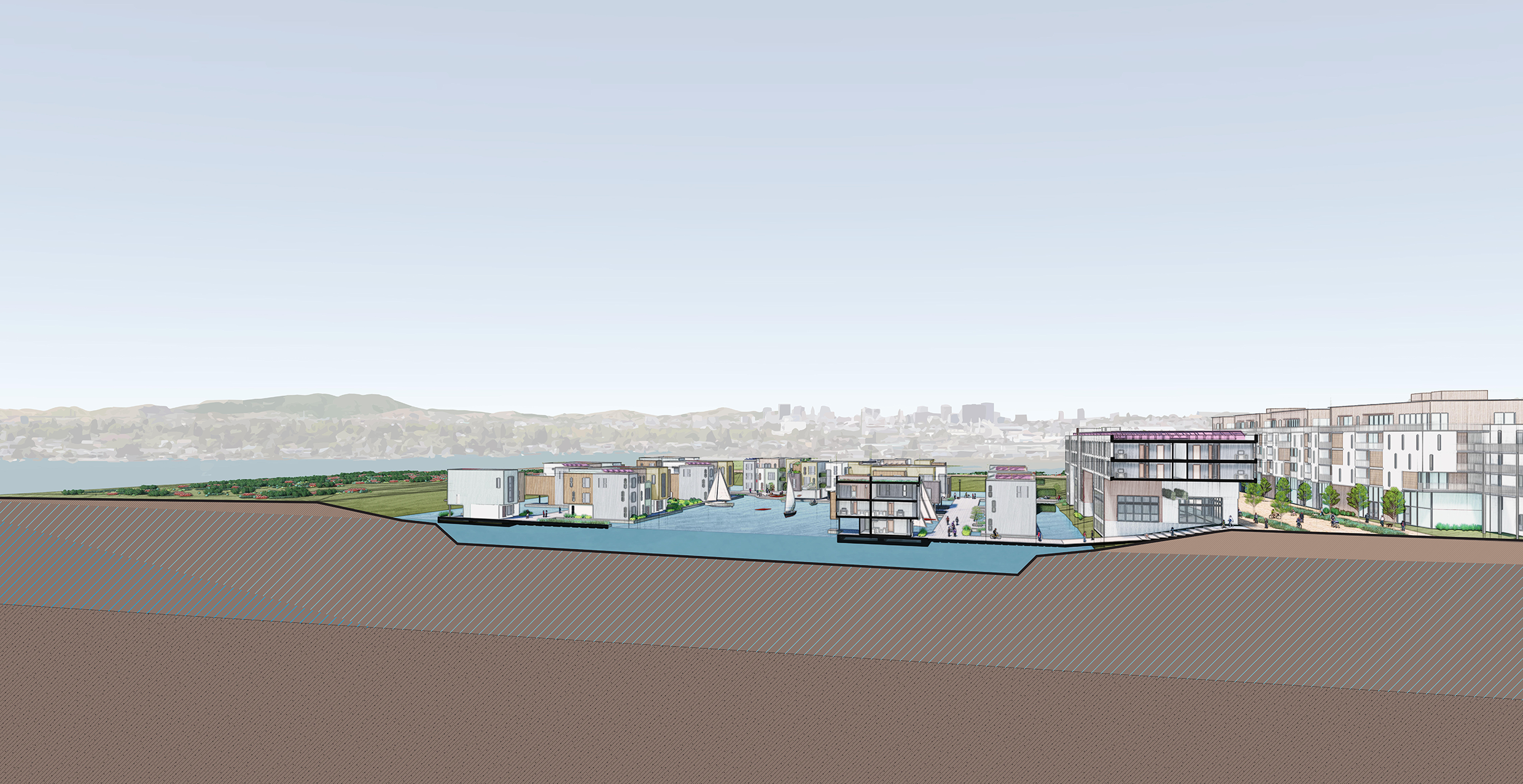

 To build a Tidal City, we would excavate a lagoon in an area that's usually dry today but faces future flooding from a combination of rising groundwater, rising bay water, and rain events. Water levels in the lagoons would be controlled with tide gates at the edge of tidal creeks. Using prefabricated units on shared decking supported by pontoons, housing densities could be as high as 50-100 units per acre.

To build a Tidal City, we would excavate a lagoon in an area that's usually dry today but faces future flooding from a combination of rising groundwater, rising bay water, and rain events. Water levels in the lagoons would be controlled with tide gates at the edge of tidal creeks. Using prefabricated units on shared decking supported by pontoons, housing densities could be as high as 50-100 units per acre.

 In addition to environmental vulnerabilities, housing affordability is perhaps the greatest threat to the diverse communities in the Estuary. Any proposal to foster local resilience must confront the challenges of gentrification and displacement through a robust approach to housing affordability that fosters adaptation without displacement. We heard loud and clear from our community partners that even the best investments in improvements will only amplify gentrification. So, our first step must be to secure communities in place and empower them to build wealth in sustainable and systemic ways.

In addition to environmental vulnerabilities, housing affordability is perhaps the greatest threat to the diverse communities in the Estuary. Any proposal to foster local resilience must confront the challenges of gentrification and displacement through a robust approach to housing affordability that fosters adaptation without displacement. We heard loud and clear from our community partners that even the best investments in improvements will only amplify gentrification. So, our first step must be to secure communities in place and empower them to build wealth in sustainable and systemic ways.


We came to this challenge as a team of technical and academic experts. We leave as committed allies in community-driven planning, enriched by our collaboration with neighborhood and agency representatives. We see the San Leandro Bay Estuary representing the dawn of a new era in city-making – an era when community priorities are at the heart of important decisions and residents prosper in harmony with rising water levels.
— ABC Project Director Stephen Engblom, Global Cities Director, AECOM.

 To protect local neighborhoods and restore native habitats, ABC leverages sea level rise adaptation and restoration to remake San Leandro Bay as a working landscape. A landscape that is muscular, strong, and alive, and a place that protects, restores, links, and gathers communities. Through the sculpting of landforms, ponds and expanded streams, East Oakland and Alameda communities can adapt to sea level rise and groundwater flooding and have a network of flourishing parks to enjoy for generations to come. We start by expanding and reshaping the existing MLK Shoreline Park and surrounding sloughs and creeks to provide fluvial flood and sea level rise protection. Arroyo Viejo Creek is rerouted to connect with Elmhurst Creek to provide additional flood capacity within Damon Slough. Each of the sloughs and flood control channels are widened and stepped to set the stage for habitat restoration and reduce flood risk.

To protect local neighborhoods and restore native habitats, ABC leverages sea level rise adaptation and restoration to remake San Leandro Bay as a working landscape. A landscape that is muscular, strong, and alive, and a place that protects, restores, links, and gathers communities. Through the sculpting of landforms, ponds and expanded streams, East Oakland and Alameda communities can adapt to sea level rise and groundwater flooding and have a network of flourishing parks to enjoy for generations to come. We start by expanding and reshaping the existing MLK Shoreline Park and surrounding sloughs and creeks to provide fluvial flood and sea level rise protection. Arroyo Viejo Creek is rerouted to connect with Elmhurst Creek to provide additional flood capacity within Damon Slough. Each of the sloughs and flood control channels are widened and stepped to set the stage for habitat restoration and reduce flood risk.





-NEXT STEPS-

Educate and inspire local resilience planning with fun and easy tools. We will host “train the trainer” sessions with community and agency representatives on our community toolkit. This includes (1) In It Together, a sea-level rise adaptation game that brings stakeholders together around a map of San Leandro Bay to explore possible resilience actions and weigh their trade-offs; (2) the Community Resilience Investment Decision-Making tool, which enables stakeholders to evaluate adaptation strategies based on community-voiced criteria; and (3) an Equity Checklist, which neighborhood advocates can reference to ensure investments deliver community benefits and address historic disparities and inequities.

Learn from each other through a peer-to-peer best practice network. ABC will also hold a series of webinars to share best practices in local resilience, bringing together advocates from communities boldly addressing similar challenges. The first is scheduled with developers of a Hip-Hop Museum in South Bronx.

Put the Community first and support developing a Community Benefits District (and beyond) in East Oakland. We recommend an existing (or new) non-profit organization be identified to administer a Community Benefits District, which would provide a community-driven framework to implement local resilience strategies and support the health, wealth, and stability of its residents. It would give East Oakland a “seat at the table” in policy conversations, and could possibly be one layer in a multi-layered community benefits structure. An immediate next step would be to leverage the community-driven planning process for the East Oakland Neighborhood Initiative to further explore this CBD structure.

Initiate near-term adaptation actions to build toward an Estuary Commons. Stakeholders and community members should take next steps to realize immediate-term social ecological benefits. This involves instigating feasibility studies and concept analyses for the Arrowhead Marsh expansion and Doolittle Drive horizontal levee; creek widening and restoration actions at Arroyo Viejo, East Slough Channel, and Hegenberger Greenway; and establishing the missing Bay Trail link between High Street and Tidewater Boating Center.

Teach the next generation of Bay Area leaders through continued academic-community engagements. To enhance learning outcomes and bring the studio to the street (and vice versa), we look to pursue more direct, community-based educational opportunities. Kristina Hill (UCB) and Janette Kim (CCA) plan to focus one of their studios next year on helping residents build resilience in East Oakland. UCB CED will also explore developing an online portal for residents to express their ideas, priorities, and challenges pertaining to resilience.


REFLECTIONS FROM THE CHALLENGE




The All Bay Collective (ABC) was created to build resilience through a collaborative and interconnected approach to infrastructure, the environment, social equity, and governance. We are a diverse group of locally-based and globally-experienced professionals, academics, and students that includes economists, affordable housing policy experts, landscape architects, architects, engineers, scientists, data experts, planners, and community engagement specialists. Together we have an extensive record working closely with cities and communities in the Bay Area and around the world building consensus; understanding and mapping vulnerabilities; writing policy; and planning, designing, and delivering iconic projects that mitigate and adapt to climate change and build resilience.

ABC includes AECOM, CMG Landscape Architecture, UC Berkeley College of Environmental Design, and California College of the Arts, in association with the Berkeley Center for New Media, The Terner Center, IDEO, Silvestrum, SKEO, modem, and David Baker Architects.

Our community partners include the East Oakland Collective, Oakland Climate Action Coalition, Scraper Bike Team, Merritt College Brower Dellums Institute for Sustainable Policy Studies, Planting Justice, HOPE Collaborative, East Oakland Building Health Communities, and Repaired Nations.
